Land Rover Series
PLUG&DRIVE
Electric Power Assisted Steering
EPAS SB300 + New Steering Column Set
No cutting, drilling or welding
(Do it Yourself)
For: Land Rover SERIES 2/2A/3

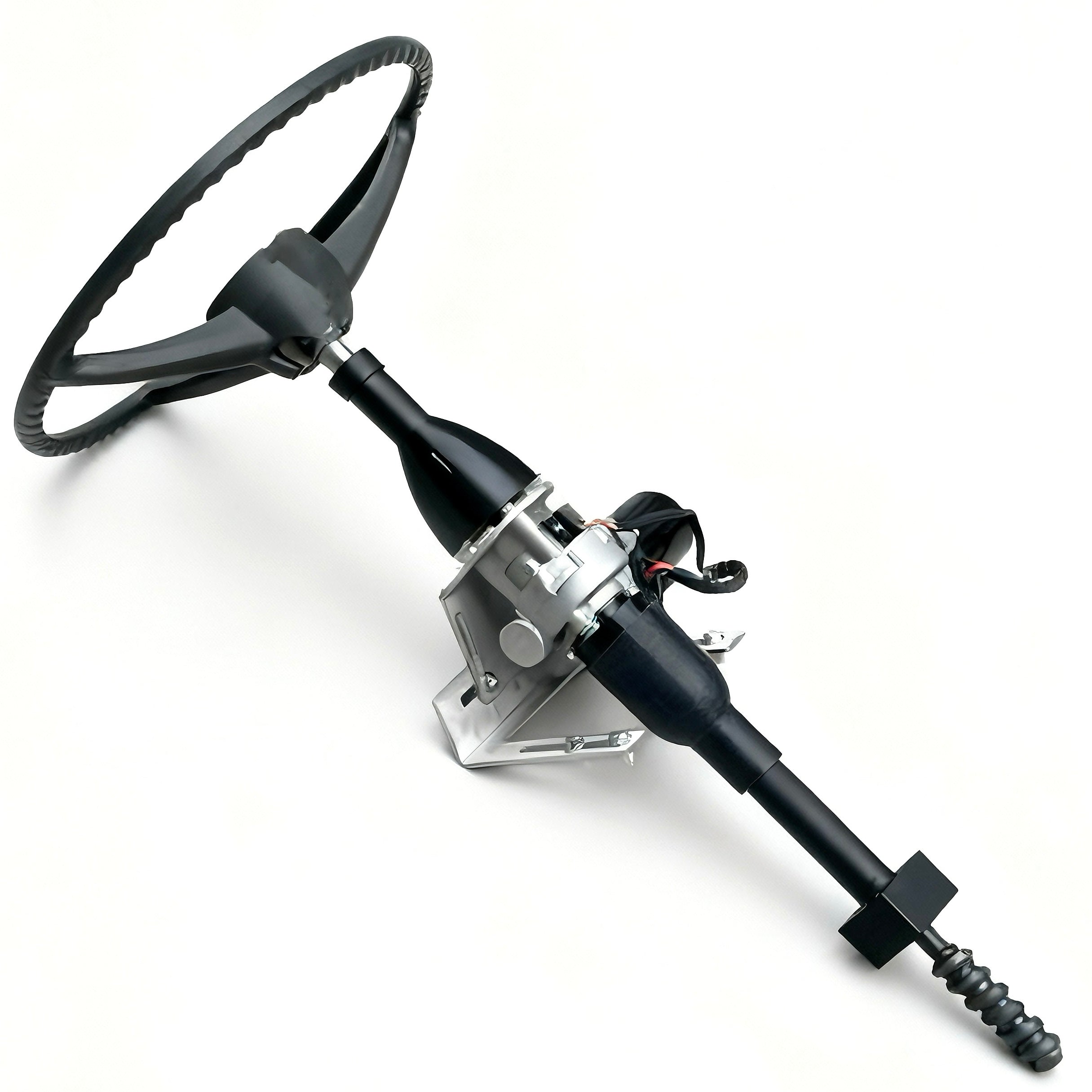

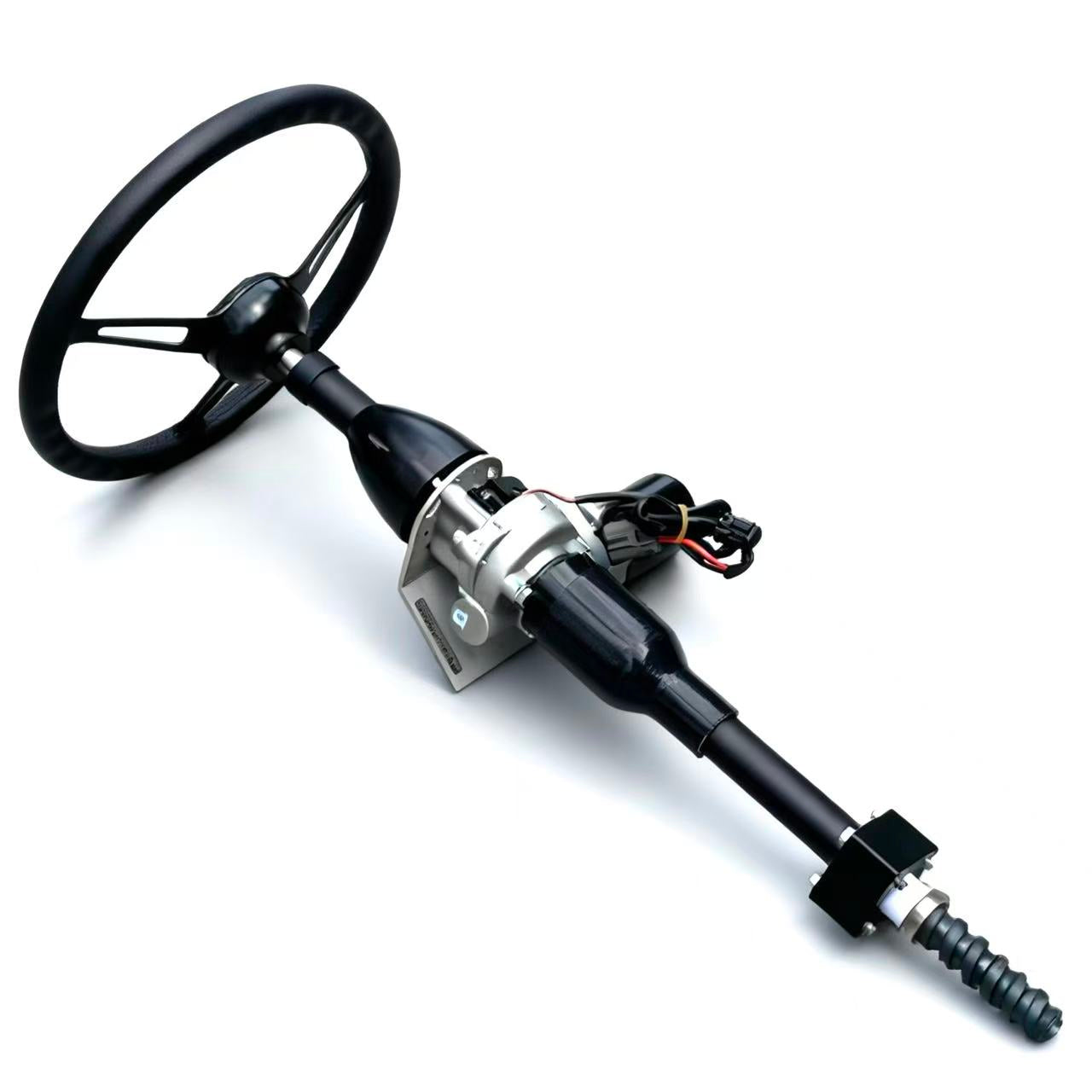

Takes the legendary performance of our original SB300 kit to the next level.

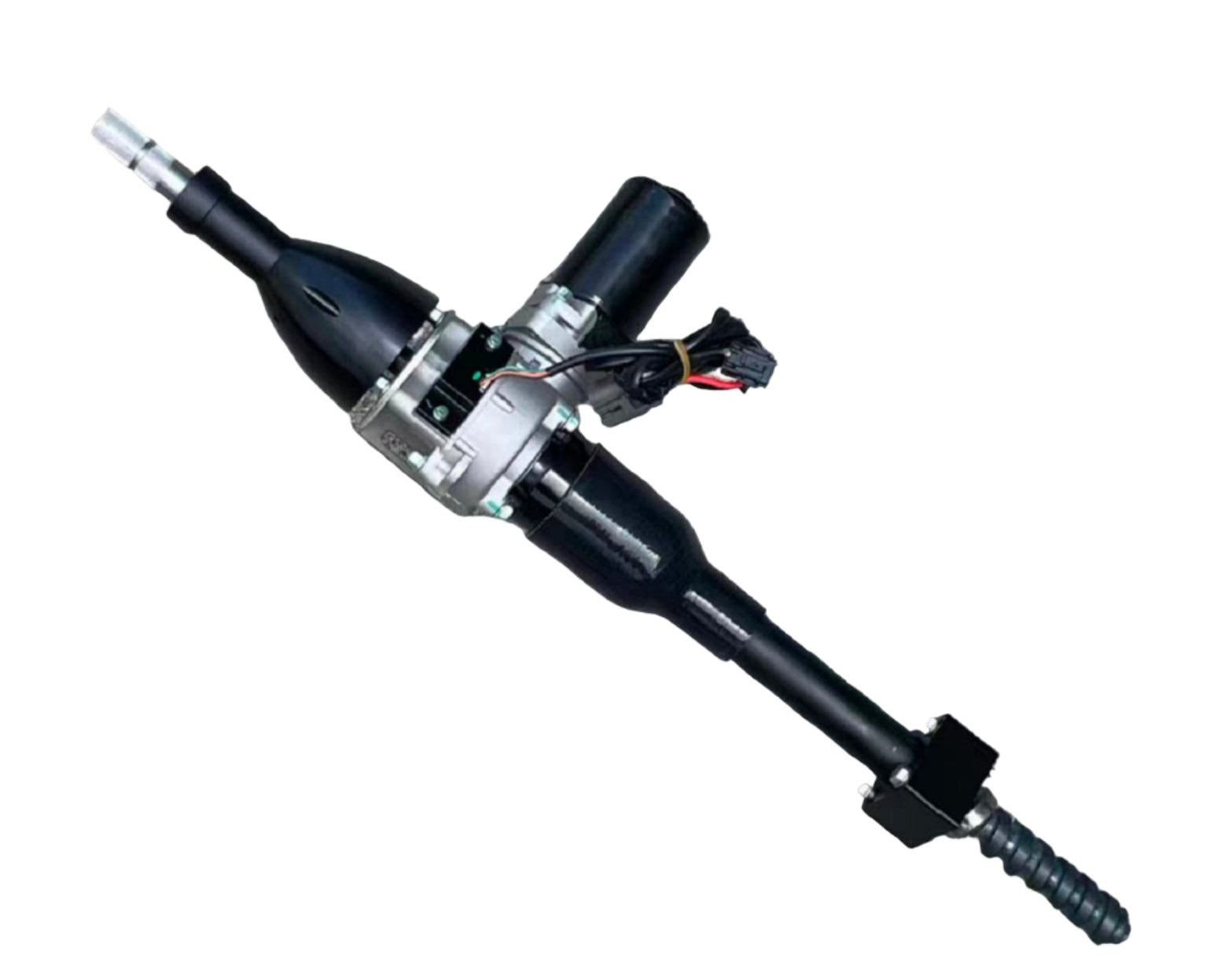

Maximum convenience and compliance, this new version includes a pre-assembled new OEM-grade 34 CrMo steel bolt-in Upper steering Shaft Column and Steering Worm.
Pre-modified for a perfect fit. Just install and drive!

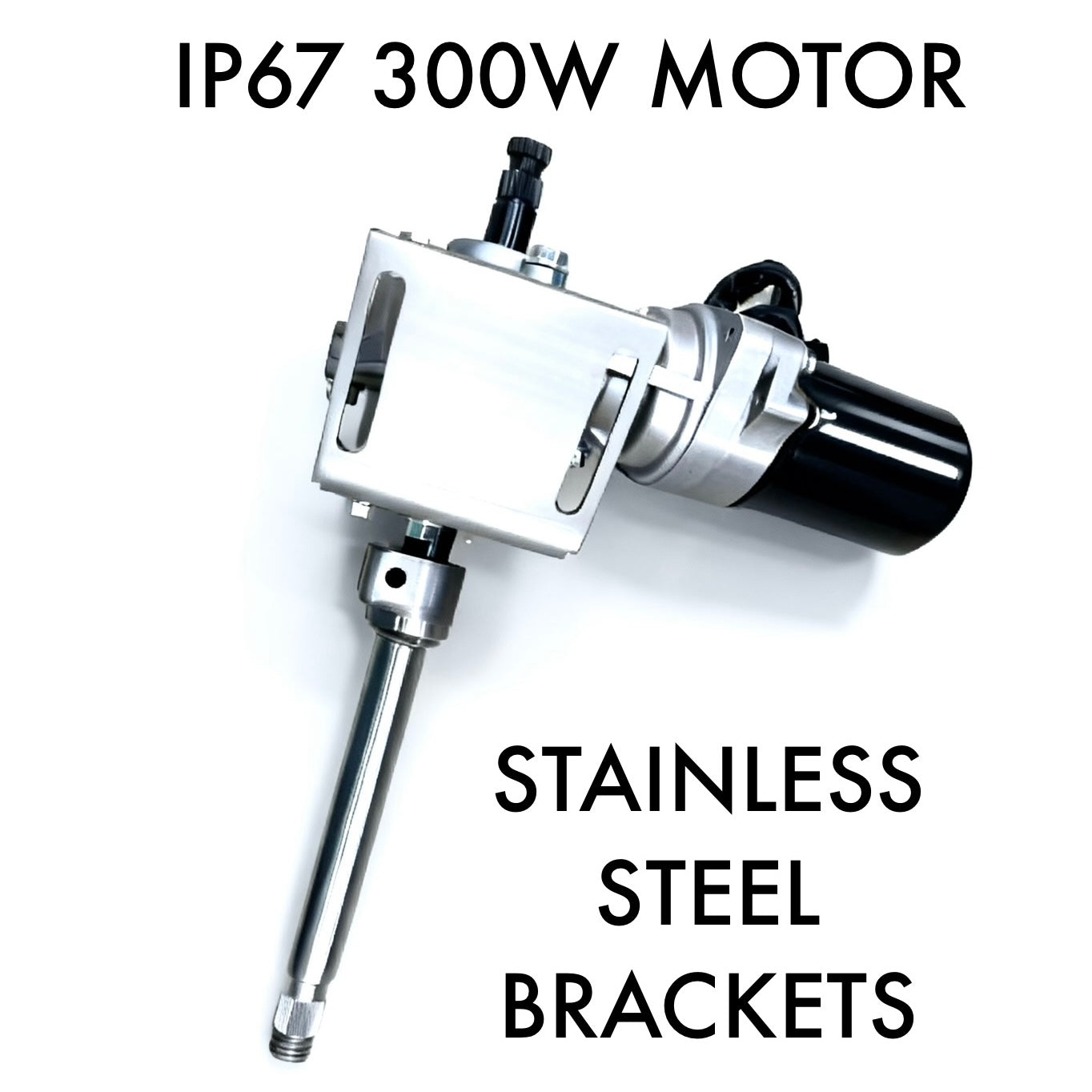

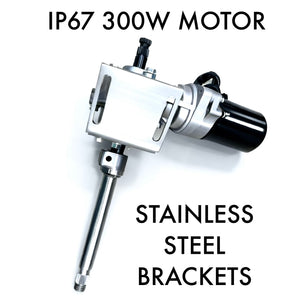

- 1x SB 300 12V system EPAS motor Kit. (24V under request)
- 1x New Pre-modified Upper Steering Shaft Column.

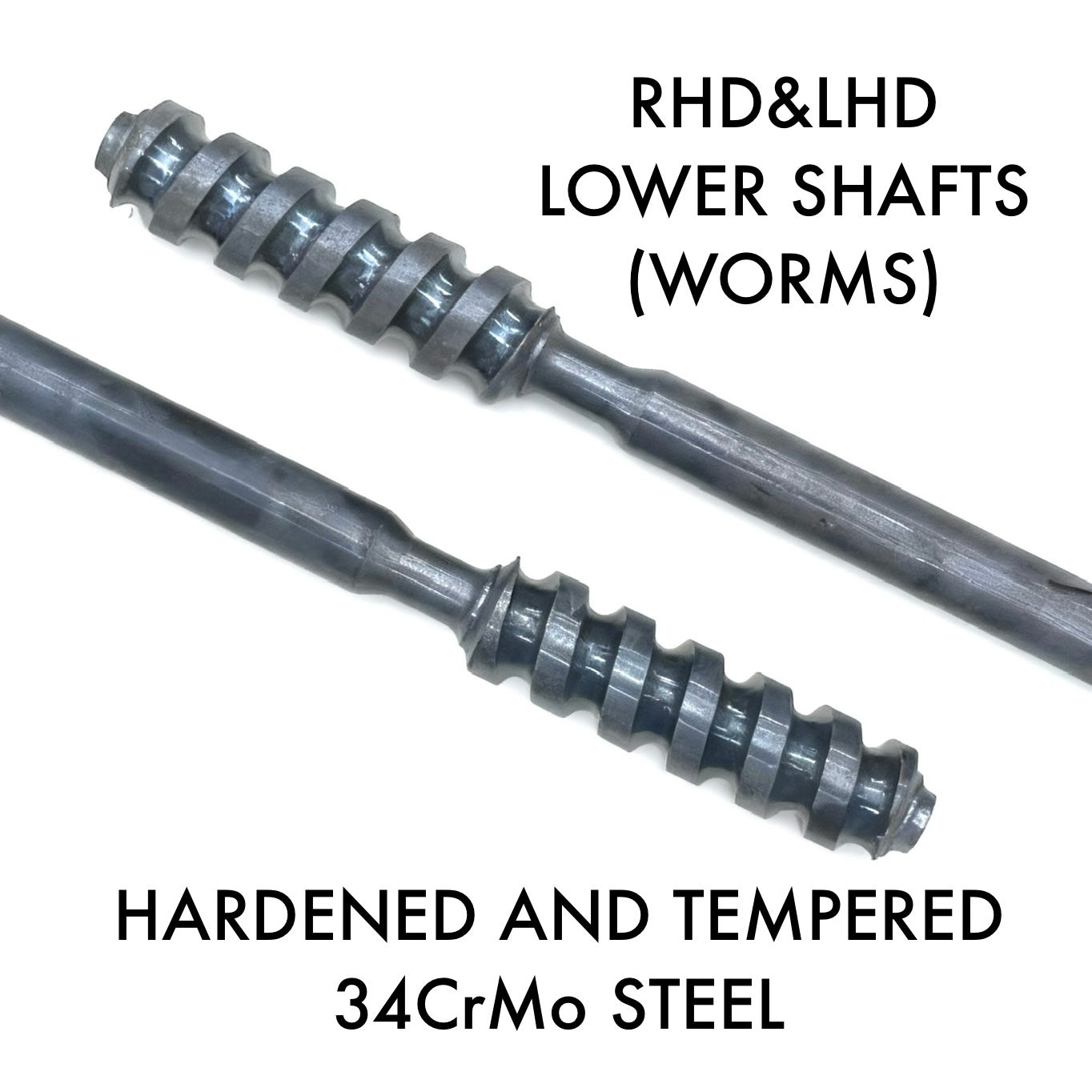

- 1x New Pre-modified Worm Steering Shaft Column.

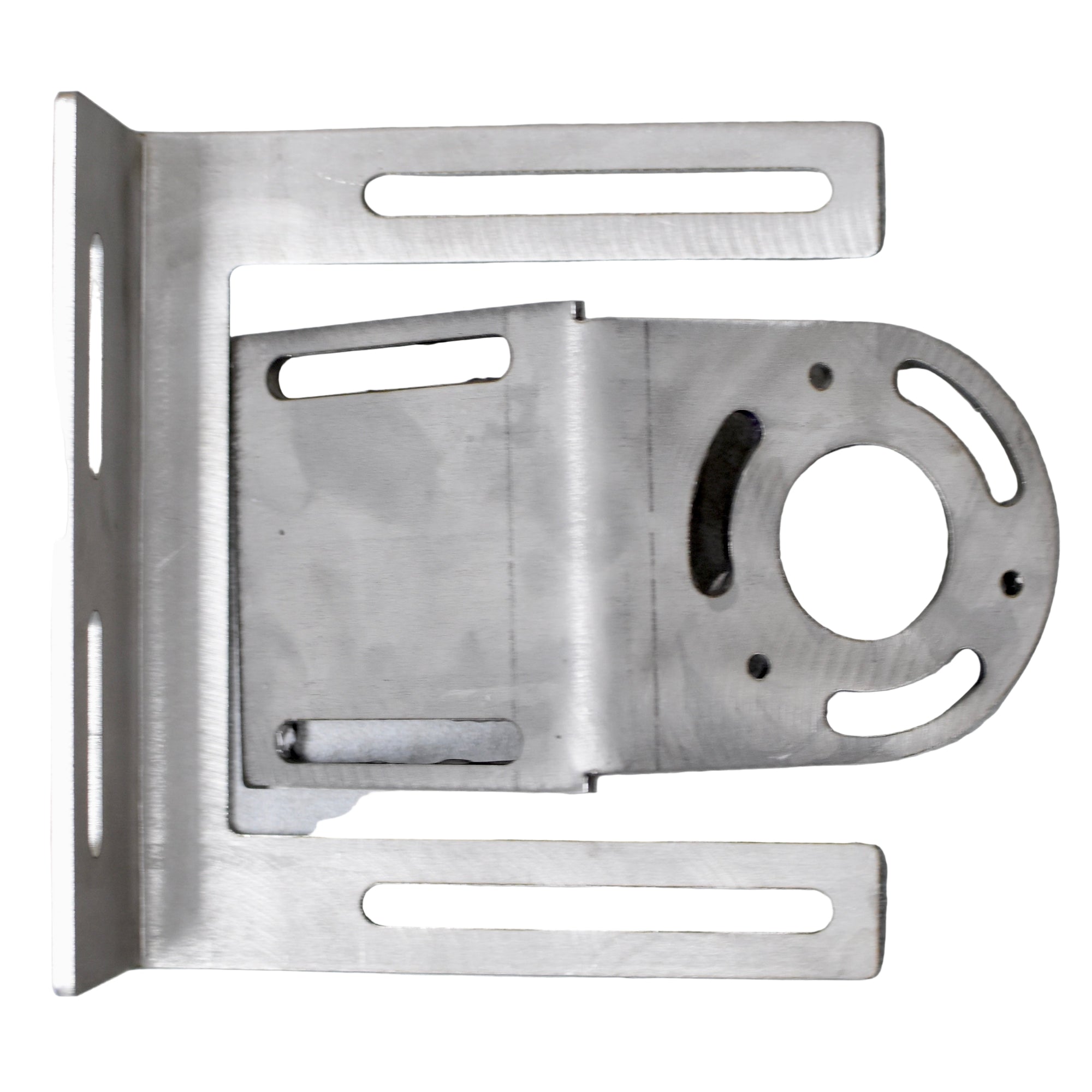

- 1x Column housing set.
- 1x All mounting hardware & connectors needed.
- 1x Adaptation guide for existing SB300 kits
- Faster, and easier installation.
- New column set ready to fit.
- No modifications No Cutting, No Welding.
- Compatible with your existing Steering Wheel.
- All the performance, durability, and precision you expect.
- Guaranteed Compliance
- Crucial for countries where modifying (cutting/welding) original Steering Shaft columns is not allowed.
-
Increase your Vehicle’s Value
- Keep the original column intact – ideal for purists or future resale.
- No need to hunt for a replacement steering shaft column.
- Many classic Land Rover columns are worn, seized, or damaged. Our brand-new Plug & Drive column saves you the hassle (and cost!) of sourcing a rare original part or refurbishing and replacing your old one.
Enjoy:
- Full electric power assistance, drive your Land Rover Series with ease.
- Better control over the vehicle at both slow and high speed.
- Even better help you when you need it most: parking, low speed maneuvering and driving through difficult terrain.
- Self-adjusted to your driving needs thanks to two torque sensors.
- Operating parameters specially configured for Land Rover Series.
- The electric motor uses power only when steering assistance is needed.
- Completely maintenance free, eternal life span.
- The SB300 electric power steering works without making any noise.
- In case electrical issues, the vehicle is NOT left without steering, instead it will continue to act as normal manual steering.
- Only option in the market that does not require to fabricate parts to be adapted to your specific vehicle.
- System designed based on motor assistance widely used in trucks and light agricultural vehicles.
- The Kit is completely hidden under the dashboard, no visible once installed.
- Re-use your existing Steering Wheel, shafts are compatible with your wheel.
- Aprox. Installation time = 4 - 6 hours.
- 24V version available under request.
Note 1:
Very Important to choose your Land Rover Series Upper Shaft model type (2/2A/2A Later version/3) and option for Left Hand Drive (LHD) or Right Hand Drive (RHD).

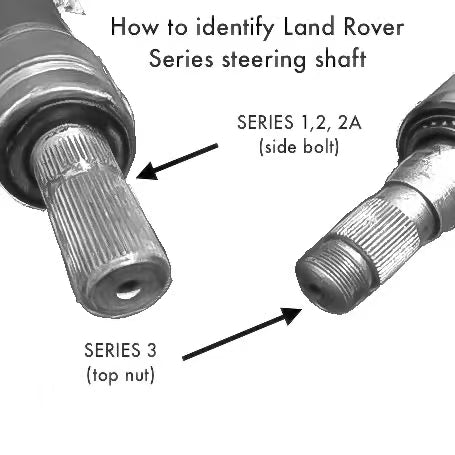

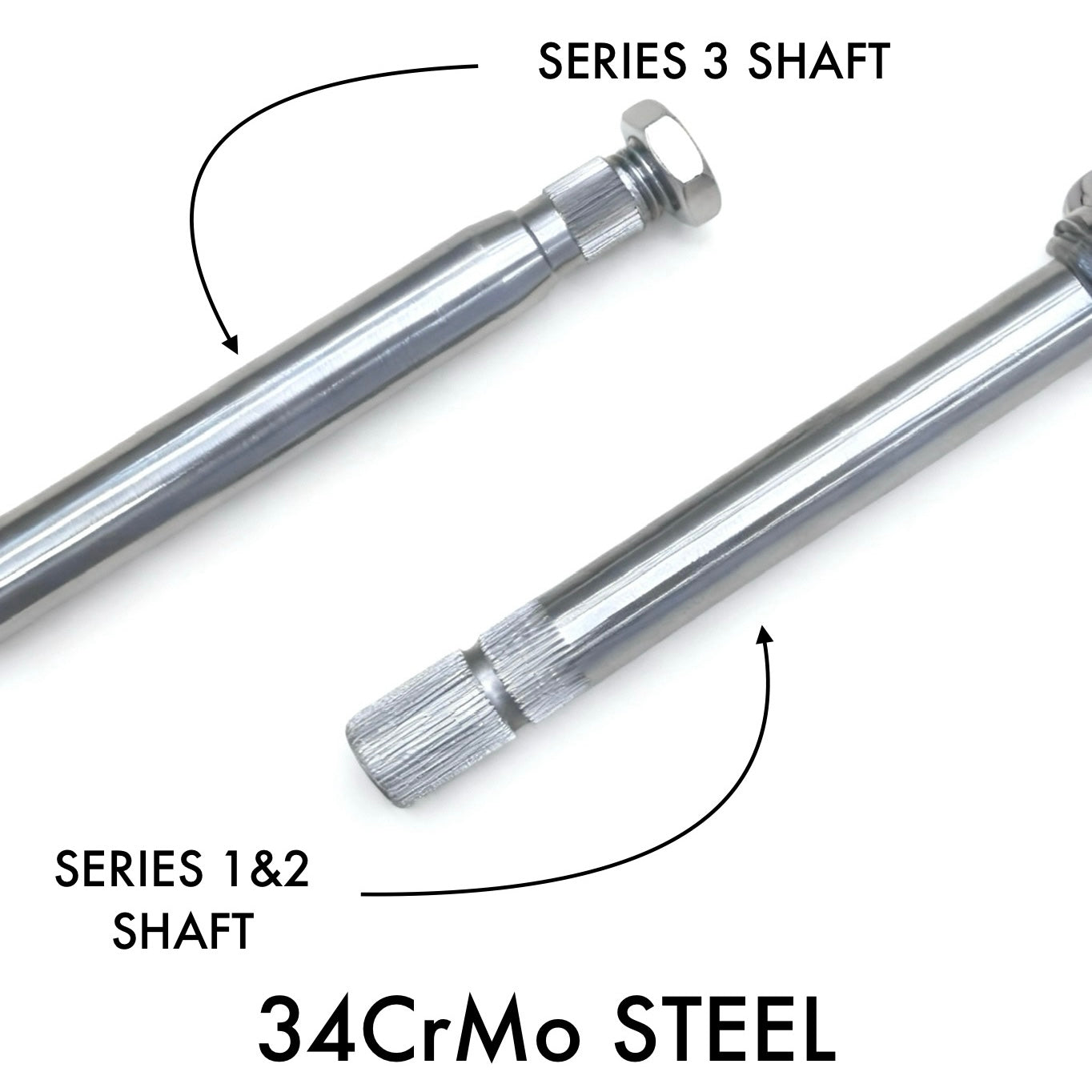

To identify your type and choose the right version, based on the top of the column:
-
Threaded Upper End Shaft: Indicates a Series 3 or Series 2A Later Versions type (uses a top nut)
-
Smooth Flat Upper End Shaft: Indicates a Series 2 or Early Series 2A type (uses a side-bolt)
Checking this is the most reliable method, as vehicles may have been modified from their original specification.
Note 2:
The steering columns available are not compatible with early type of steering box for Land Rover Series 1 (80")(if you had replaced that early steering box for one of a Series 2 or Series 3, in that case, it will be compatible).
The steering columns available are not compatible Series 3A (Santana) models.
For those models, the original steering shaft column must be refurbished and used with the SB300 EPAS system.
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
For further assistance, please do not hesitate to contact our team.
